Low outgas cable

  • APPLICATION

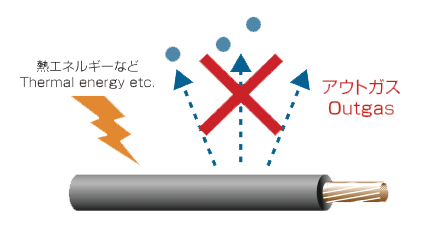

    This low outgas cable is possible to use wiring in a clean room such as the semiconductor manufacturing, because a cable do not volatilize of contaminant such as the DOP, DBP and siloxane.

  • CHARACTERISTICS

    The amount of the out gas generation has been decreased to 1/10 more than past PVC cables. Moreover, we developed ecology low outgas cable which does not use PVC such as olefin materials.

Outgas level

⇄ swipe
A B C D
Volatilizing of plasticizer few many
Products Low outgas cable
(ECOLEX-Series)
(05Z1-K)
(07Z1-K) 		H05V-K+RV
MTW+H05V-K
MTW+H07V-K 		RO-FLEX 1100T(S)
RO-FLEX 7700T(S)
RO-FLEX 22710T 		RO-FLEX 10T
RO-FLEX 50T
RO-FLEX 80T

Analysis of outgas

Analysis
Dynamic Headspace-Gas Chromatography-Mass Spectrometry(DHS-GC-MS)
Thermal Desorption Cold Trap(TCT)

Heating conditions 80°C×60min
Analysis of outgas

The contaminant does not volatilize.

Phthalate esters
Phosphate esters
Siloxane
The contaminant does not volatilize.
TOP Back to top

Heat resistance

Heat resistance level

⇄swipe
A B C D
Conductor temperature Rated temperature
EN, IEC 		90°C 90°C 70°C 70°C
Test requirement EN, IEC 135°C×336h 80°C×168h
Insulation temperature Rated temperature UL, CSA 105°C 80°C 80°C 60°C
Test requirement UL, CSA 136°C×168h 113°C×168h 100°C×168h

Test result (135°C×336h) ex.MTW+H07V-K

Test result (135°C×336h) ex.MTW+H07V-K
Test result (135°C×336h) ex.MTW+H07V-K
  • IECInternational Electrotechnical Commission
  • ENEuropean Norm
  • ULUnderwriters Laboratories
  • CSACanadian Standard Association
  • ※This data is measurements and the reference.
TOP Back to top

Oil resistance

Oil resistance level

⇄swipe
A B C D
EN, IEC 90°C×168h ー 90°C×24h ー
UL, CSA ー 100°C× 96h
60°C×168h		 ー ー
JIS ー ー ー 70°C×4h
Test Oil:ASTM IRM902

Test result (90°C×24h, 168h) ex.RO-FLEX 1100T

Test result (135°C×336h) ex.MTW+H07V-K Test Oil ASTM IRM902
Test result (135°C×336h) ex.MTW+H07V-K Test Oil ASTM IRM902
  • IECInternational Electrotechnical Commission
  • ENEuropean Norm
  • ULUnderwriters Laboratories
  • CSACanadian Standard Association
  • ※This data is measurements and the reference.
TOP Back to top

Flame retardant

Flame reatrdant level

⇄swipe
Standard A B C D
IEC IEC 60332-3
Category A		 IEC 60332-3
Category C		 EN 50265-2-1
(IEC 60332-1)		 IEC 60332-2
Horizontal flame test
UL ー VW-1 for CT use VW-1 Horizontal flame test
CSA ー FT4 FT1 FT2
JIS, JCS, PSE ー JIS C 3521
JCS 7397		 PSE flame retardant test JIS C 3005
Caution: The products of Flame retardant level is an ability value.
⇄swipe
Level A Test outline Apparatus
IEC 60332-3
Category A
Cables of object Vertically-mounted bunched wires or cables.
Sample 3.5m
Nonmetal sample volume 7L/m
Quantity of combustion 70,000BTU/h(75,999kJ/h)
Flame application time 40min
The wind velocity in the chamber 0.386±0.038m/s
Judgement standard ①The length of the cable damage from the bottom
edge of the burner = under 2.5m
TOP
⇄swipe
Level B Test outline Apparatus
VW-1 for CT
use
Sample 2.4m×number(Depend on the cable diameter)
Gas LP Gas
Gas rule 93MJ
Quantity of combustion 70,000BTU(20kW)
Burner Horizontal setting
Flame application time 20min
Judgement standard ①The length of the cable damage from the bottom edge
of the cable tray = under 2.2m
TOP
CSA FT4
Sample 2.3m×number(Depend on the cable diameter)
Gas LP Gas
Gas rule 85MJ
Quantity of combustion 70,000BTU(20kW)
Burner Slant 20°
Flame application time 20min
Judgement standard ①The length of the cable damage from the bottom edge
of the cable tray = under 1.5m
IEC 60332-3
Category C
Cables of object Vertically-mounted bunched wires or cables.
Sample 3.5 m
Nonmetal sample volume 1.5L/m
Quantity of combustion 70,000BTU/h(75,999kJ/h)
Flame application time 20min
The wind velocity in the chamber 0.386±0.038m/s
Judgement standard ①The length of the cable damage from the
bottom edge of the burner = under 2.5m
JIS C 3521
JCS 7397 		Flame test method for flame retardant sheath of communication cables.
Sample 2.4m
Gas LP Gas (JIS K 2240 2-1)
Flame application time 20min
Evaluation ①After combusting a cable 20 min,the test is finished when
the combustion of the cable stopped naturally.
②The damage length is measured, a burner is the starting
point. The burner's height is 600mm from the tray bottom.
⇄swipe
Level C Test outline Apparatus
VW-1
Sample 610mm×1
Flame application time 15 sec combustion and 15 sec stop → 5 times
Judgement standard ①After five flame tests, combustion time is not over 60 sec.
②The damage does not exceed 25% during the flame test
or after removing the flame.
③Cotton do not catch fire by the flame or flaming.
TOP
FT1
Sample 610mm×1
Flame application time 15 sec combustion and 15 sec stop → 5 times
Judgement standard ①After five flame tests, combustion time is not over 60 sec.
②The indicator flag's damage does not exceed 25% after
removing the flame.
EN 50265-2-1
(IEC 60332-1)
Sample 600mm×1
Burner Conform to the IEC 60695-2-4/1, gas burner of 1kW
Flame application time Depend on the sample diameter (ex. Diameter≦25mm,
60 sec)
Judgement standard ①The length of cable damage = more than 50mm
②The length of downward limit of cable damage =
less than 540mm
TOP
⇄swipe
Level D Test outline Apparatus
JIS C 3005 Test methods for rubber or plastic insulated wires and cables.
Sample 300mm×1
Gas About 37MJ/㎥(900kcal/㎥), Methane(Factory use)
Evaluation ①Horizontal flame test The bottom of the central part of the sample is
exposed to flame till combustion, less than 30 sec.
Examine degree of the damage after removing the flame.
②Slant flame test After 20mm parts from the bottom edge of the
sample is exposed to flame till combustion, less than 30 sec.
Examine degree of the damage after removing the flame.
TOP
  • IECInternational Electrotechnical Commission
  • ULUnderwriters Laboratories
  • JISJapan Industrial Standard
  • CSACanadian Standard Association
  • JSCJapanese Cable Makers' Association Standard
  • PSEDenan Law
TOP Back to top

Flexing

Flexing level

⇄swipe
Condition A B C D
C Type ≧10,000,000/cycle ≧5,000,000/cycle ≧3,000,000/cycle <3,000,000/cycle
U Type ≧10,000,000/cycle ≧3,000,000/cycle ≧1,000,000/cycle <1,000,000/cycle
O Type ≧5,000,000/cycle ≧3,000,000/cycle ≧1,000,000/cycle <1,000,000/cycle
S Type ≧5,000,000/cycle ≧1,000,000/cycle ≧500,000/cycle <500,000/cycle
L Type ≧2,000,000/cycle ≧500,000/cycle ≧300,000/cycle <300,000/cycle
R Type ≧1,000,000/cycle ≧300,000/cycle ≧100,000/cycle <100,000/cycle
V Type ≧300,000/cycle ≧100,000/cycle ≧20,000/cycle <20,000/cycle
  • ※This data is reference value.
⇄swipe
Type Test outline Apparatus
C Type
(Torsion test)
  • ● Twisting at speed of 60times/min.
  • ● Twisting each reversal 60°.
  • ● The outer damage and the conductor disconnection are inspected.
 TOP
U Type
(Cable bearing test)
  • ● Bending at speed of 200times/min.
  • ● Stroke is 300mm.
  • ● The outer damage and the conductor disconnection are inspected
 TOP
O Type
(Bending test)
  • ● The test method is based of JIS C 3005.
  • ● Turning the rotor at speed of 20times/min.
  • ● The outer damage and the conductor disconnection are inspected.
 TOP
S Type
(Moving bending test)
  • ● The test method is based on Flexing test of EN 50396.
  • ● The carrier makes cycle 1m.
  • ● Moving at speed of 0.33m/s.
  • ● The outer damage and the conductor disconnection are inspected.
 TOP
L Type (90℃ Loopback test)
  • ● The test method is based on MIL-C-13777.
  • ● Bending at speed of 60times/min.
  • ● The outer damage and the conductor disconnection are inspected.
 TOP
R Type
(Robot test)
  • ● The test method is combined L type and C type test.
  • ● Bending at speed of 60times/min.
  • ● The outer damage and the conductor disconnection are inspected.
 TOP
V Type
(Seismic test)
  • ● The test method is based on the Quake-resistant test of Denan Law.
  • ● Bending each side 45ﾟ.
  • ● Bending at speed of 200times/min.
  • ● The outer damage and the conductor disconnection are inspected.
 TOP
TOP Back to top

Noise resistance

Noise resistance level

⇄swipe
Contents A B C D
Braid shield ○ ○ --- ---
Twisted pair ○ --- ○ ---
  • About noise

    There are many causes of noise, including electrostatic induction and electromagnetic induction.

  • About electrostatic induction

    An electrostatic shield blocks electrostatic induction (copper shields, etc.). Copper shields are cheap, easy to process, and highly versatile. However, they only have an effect on electrostatic induction and do not have an effect on electromagnetic induction.

  • Shield type
    • Braided shield:Great for controlling noise in low-level frequencies Braided shield:Great for controlling noise in low-level frequencies
    • Spiral shield:Flexibility,Highly bendable Spiral shield:Flexibility,Highly bendable
    • Aluminum polyester shield:100% consistency with a small amount Aluminum polyester shield:100% consistency with a small amount
    TOP
  • About electromagnetic induction

    A magnetic shield blocks electromagnetic induction.
    A twisted wire is often used as a measure against noise from electromagnetic induction.
    With this, noise can be reduced by about 80 – 90%, as even if electromagnetic induction occurs, the effects of the noise are cancelled out by each wire.

  • About electrostatic induction

    EMC(Electoro Magnetic Compatibility) refers to electromagnetic compatibility, and is a regulation regarding electromagnetic noise interference and resistance given off by electrical equipment.
    EMI(Electoro Magnetic Interference):Regulatory EMS(Electoro Magnetic Specification) related to the effects of electrical equipment itself:Regulations established to control the occurrence of noise given off from other equipment are collectively known as EMC. These regulations generally regulate all electronic equipment, including cables. This is because, even if the same cable is used, the overall shield effect may change as a result of the combination of electronic equipment or operating frequencies. EN 50525-2-51 Transfer Impedance is provided as a cable shield feature requirement, and our shielded cables conform to the 250mΩ/m or lower: 30MHz transfer impedance required value and are valid EMC measures(2014/30/EU) based on the EMC directive.

TOP Back to top

Weather(UV)resistance

Weather resistance level

⇄swipe
Contents A B C D
Color Black color is recommended for weather resistance cable.
Cable type Cable type color Black Single wire color Black Cable type other than
color Black 		Single wire other than
color Black
Change rate(%) < -20 % < -30 % < -40 % < -50 %
※Difference between the value after aging and the value without aging.

Xenon weatherometer test

[Test condition:ISO 4892-2 Method A]
⇄swipe
Item Contents
Light source 7kW Xenon-arc lamp
Test time 720hours
Spray cycle Dry interval between spraying 102min ± 0.5min
Duration of spraying 18min ± 0.5min
Relative spectral irradiancee 550W/㎡（290～880nm）
Black-panel temperature 65±3°C
Relative humidity 50±5%
※This data is only for reference value.
